Hanumant Electronics

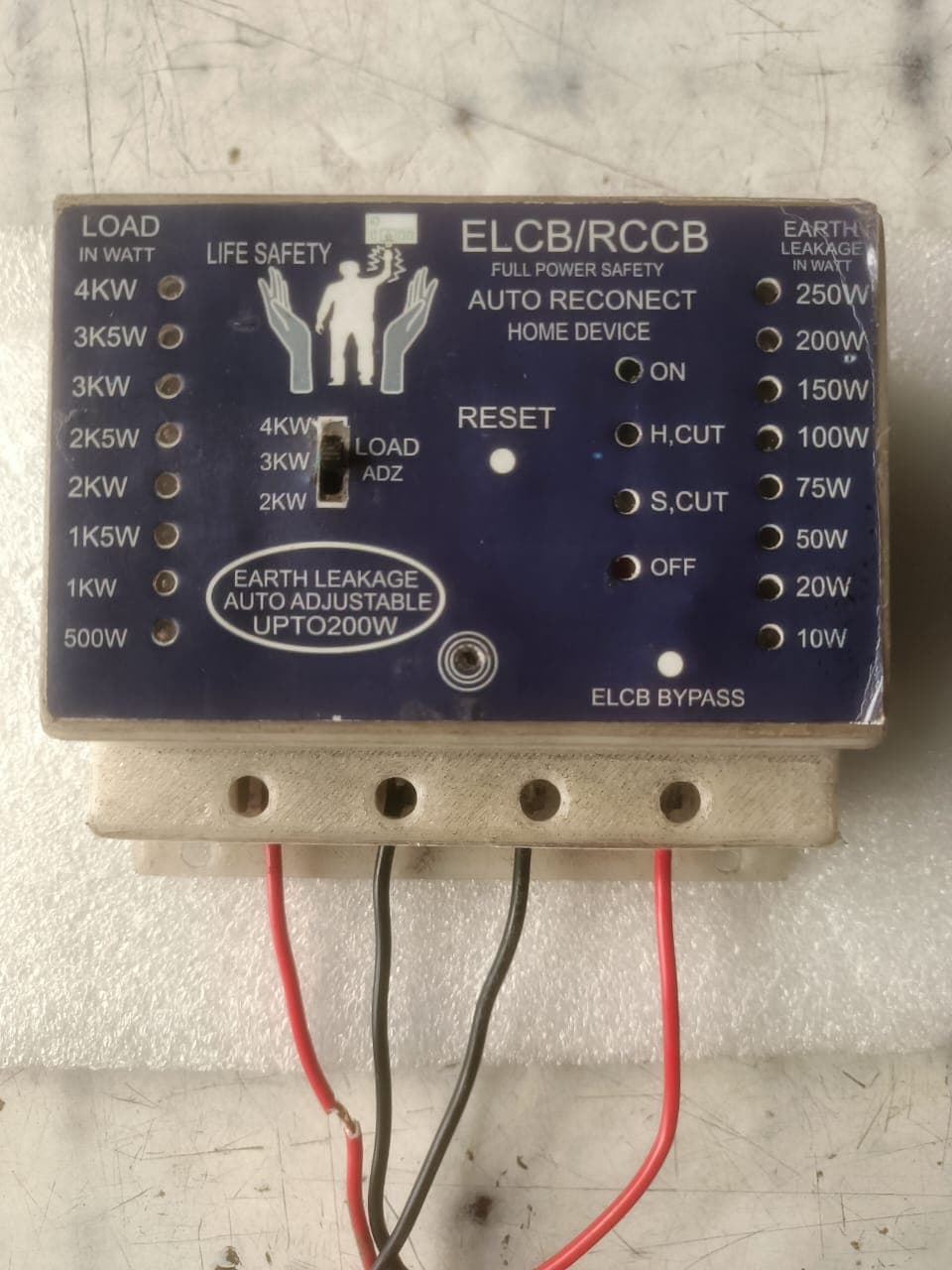

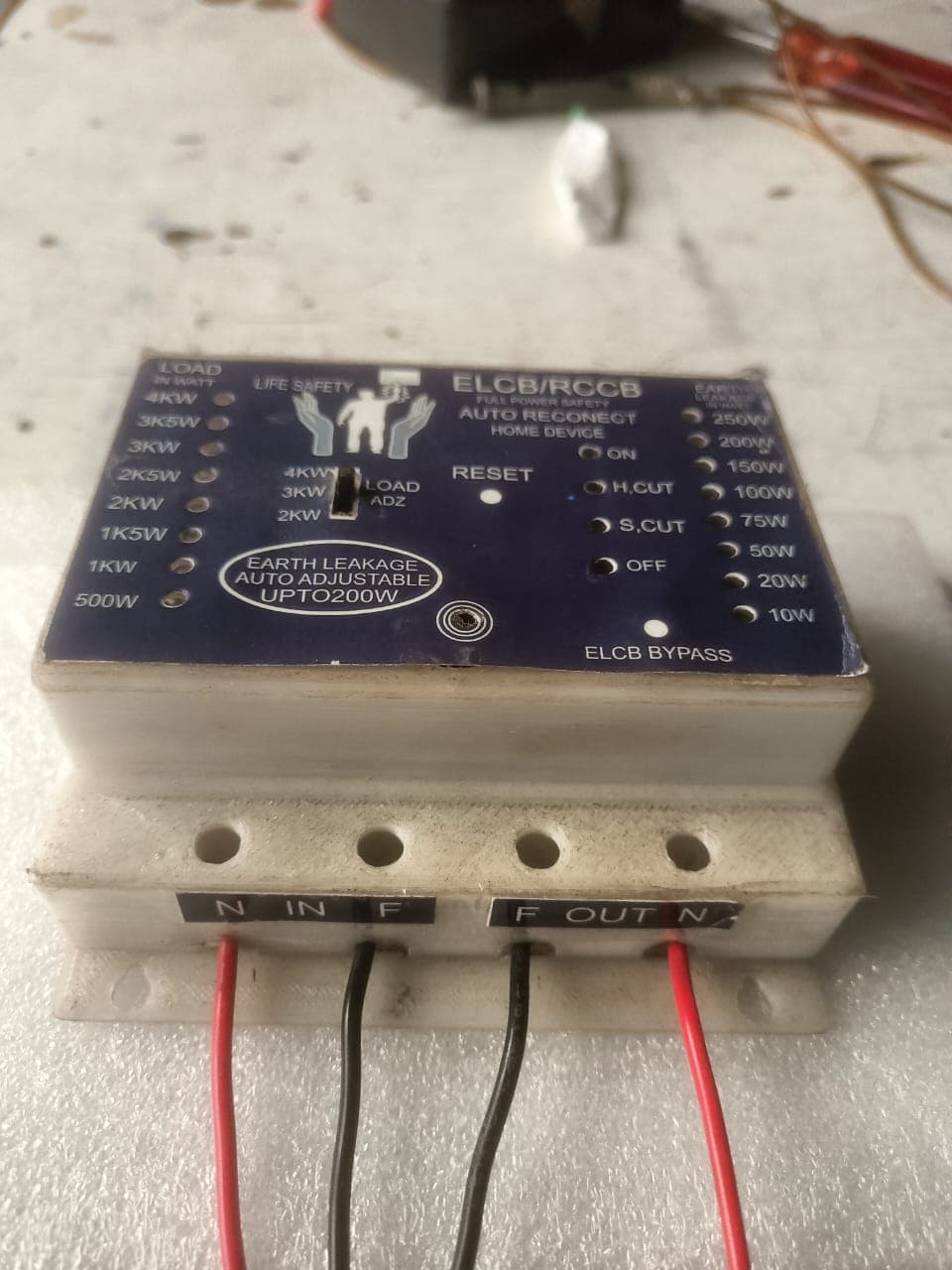

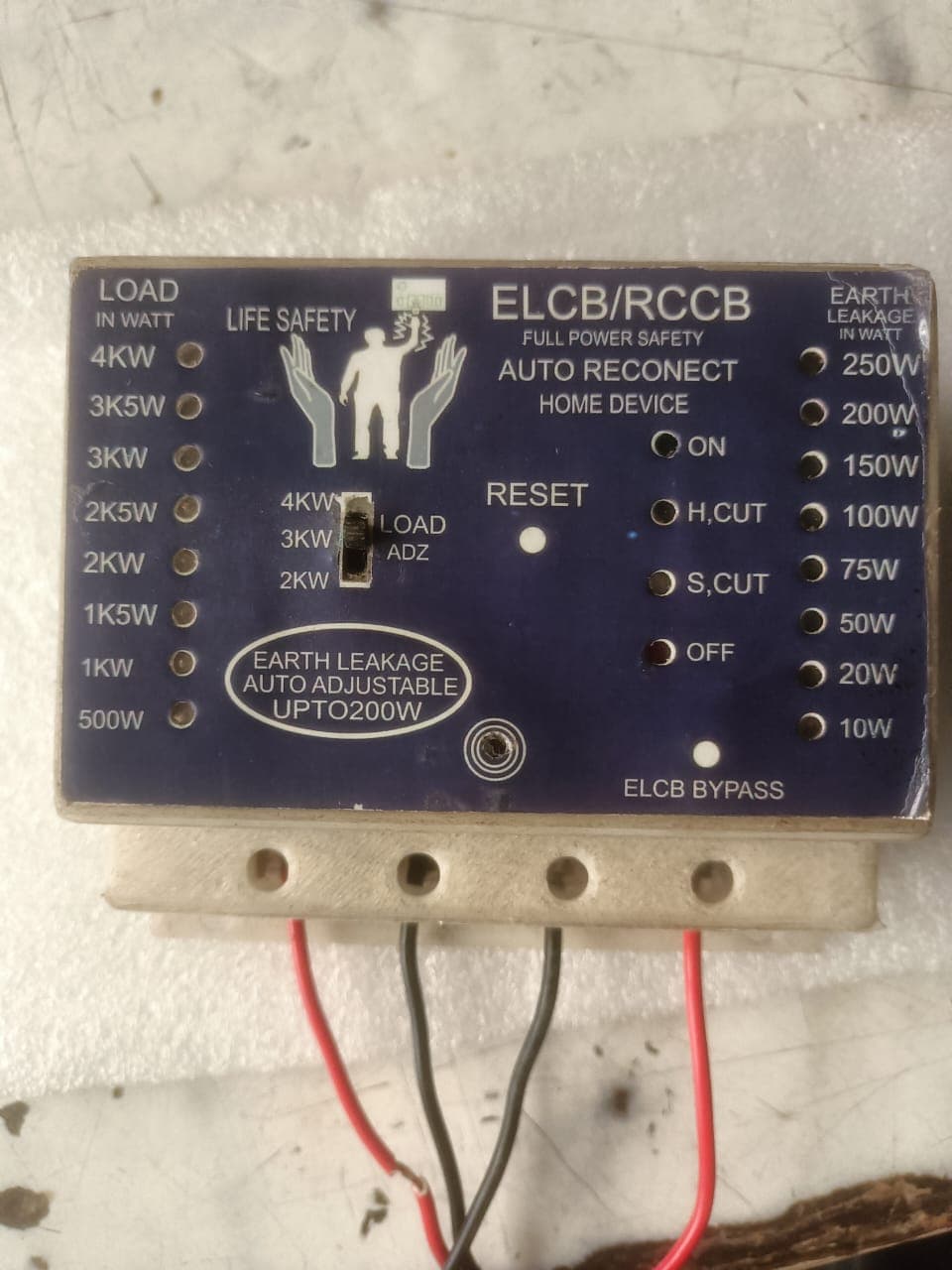

ELCB + RCCB Automatic Reconnect Board

Advanced life safety and power protection with smart auto-reconnect features.

Key Features:

  • ⚡ If the leakage current is less than 1000mA in running condition, as soon as it increases to minimum 40mA, the device will be switched off for 10s.
  • ⚡ Use leakage current bypass switch for help. Beep will come in 10s when bypass is turned on.
  • ⚡ High voltage cut-off adjustable switch at 240V, 260V, 280V AC.
  • ⚡ Low voltage cut-off adjustable switch at 100V, 120V, 140V AC.
  • ⚡ Overload adjustable switch 2kW, 3kW, 4kW with automatic reconnect.
  • ⚡ Overload automatic off and auto on time = 5s.
  • ⚡ Short circuit: device fully off, will not auto restart.
  • ⚡ Manual ON using reset switch.
  • ⚡ Home load LED display: 500W, 1kW, 1.5kW, 2kW, 2.5kW, 3kW, 3.5kW, 4kW.
  • ⚡ Home leakage current LED display: 10W, 20W, 50W, 75W, 100W, 150W, 200W, 250W.
